Whirlpool WTW6120HW1 Washer Repair in Katy (77450): F9E1 Long Drain Error Explained
Symptom: The washer stopped mid-cycle, the lid stayed locked, water remained in the tub, and the display showed F9E1 (long drain). Through the service diagnostics mode, no component would activate. That behavior pointed to a failed main control board. However, deeper testing revealed the real root cause and why the board failed as well.

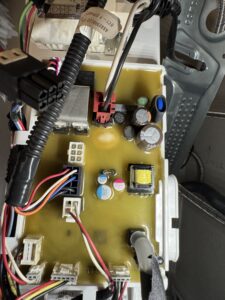

Our diagnosis: Using the tech sheet values, we measured the drain pump coil and got 2 Ω. The correct range for this model is 17.8–21 Ω. Because the resistance was extremely low, the pump windings were shorted. As a result, the pump demanded far more current than designed. Consequently, the main control board’s drain-pump driver overheated and failed. In short: the drain pump burned first, and the control board failed afterwards.
Why a Skilled Technician Matters
F9E1 is a common Whirlpool/Maytag code. Many techs see a dead board, replace it, and leave. Unfortunately, if the original cause (a shorted pump) remains, the new board can fail again. Therefore, you need a technician who tests components against the published ohm specs and confirms water path and pressure-sensor readings. Thorough diagnostics protect your wallet, reduce downtime, and keep your repair covered by warranty. With superficial diagnostics, repeat failures occur, and the standard 90-day post-repair warranty may not help if a new board gets damaged by an unresolved short.
What Causes a Whirlpool Drain Pump to Burn Out?
- Obstructions in the pump housing: Coins, hairpins, screws, rubber bands, and small clothing pieces can jam the impeller, stall the motor, and overheat the windings.
- Broken impeller or worn bearings: The motor then spins off-balance, drags, and draws excessive current.
- Clogged drain path: A blocked hose or standpipe forces the pump to run longer under load.
- Pressure-sensor hose issues: If the small tube to the pressure sensor is clogged, the board “thinks” the tub is still full and keeps the pump running until it overheats.
- Electrical short or water intrusion: Moisture in the connector or a chafed wire can lower resistance and cook the pump quickly.
In this specific case, water remained in the basket and the coil measured only 2 Ω. That reading indicates a winding short caused by long, overloaded run time—very likely due to a blockage in or around the pump.
Exact Repair Path We Recommend
- Remove the cause: Clear the pump housing and hose of any debris; inspect the standpipe for slow drainage.
- Replace the failed pump: Install an OEM-spec drain pump. Verify resistance near 18–21 Ω before installation.
- Replace or repair the damaged main control: Because diagnostics could not activate components, the board’s driver circuit was likely damaged by the shorted pump and must be replaced or professionally rebuilt.
- Test the pressure-sensor hose: Ensure the tube is open and seated so the board accurately detects water level.
- Run full diagnostics: After reassembly, run the service test to confirm proper drain time, spin, and error-free operation.
Serving Katy & Cinco Ranch (ZIP 77450)
If you’re in Katy or Cinco Ranch (77450) and your Whirlpool WTW6120HW1 shows F9E1, we can help the same day in most cases. We diagnose the entire drain system, not just the board, so your repair lasts.
Washer repair service details »
How We Confirmed the Failure

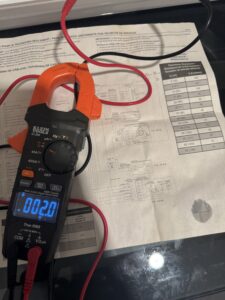

First, we entered diagnostics. Because no loads would activate, we suspected low-voltage supply or driver failure on the main board. Next, we isolated the drain pump connector and measured coil resistance with a True-RMS meter. The reading of 2 Ω fell far outside the 17.8–21 Ω spec, proving the pump had internally shorted. This short explains the board failure and the “long drain” condition with water stuck in the tub.
Preventing an F9E1 Comeback
- Check garment pockets for coins and screws.
- Use mesh laundry bags for small items.
- Keep the standpipe clear and at the correct height to avoid siphoning or slow flow.
- Clean the pump filter area during routine maintenance if accessible on your model.
- Listen for unusual grinding or humming; shut the washer off quickly if heard.
Can I Fix This Myself?
Some homeowners can handle basic checks; however, this failure typically requires parts and advanced testing. If you want to try a few safe steps first, consider these tips:
- Power cycle safely: Unplug the washer for 2–3 minutes to clear temporary logic faults.
- Inspect the drain hose: Verify it isn’t kinked, frozen, crushed, or clogged where it meets the standpipe.
- Check the standpipe flow: Run water from a nearby sink into the standpipe; slow drainage means a plumbing blockage.
- Listen to the pump: If the pump only hums with no water movement, it’s likely jammed or failed.
- Avoid repeated restarts: Don’t keep forcing drain cycles; doing so can overheat the board further.
If water remains and the lid stays locked, the safest route is professional service. A pro can measure coil resistance, check voltage at the board, and confirm whether both the pump and board must be replaced.
Why Choose HomeFix Appliance Repair
- Deep diagnostics: We measure before we replace. That’s how we caught the 2 Ω pump and prevented another board failure.
- OEM-grade parts: We install parts that match Whirlpool specs to protect the control board.
- Clear pricing & local support: We serve Katy & Cinco Ranch daily and stand behind our work.
Need help now in 77450? Book your washer repair or call +1-346-489-7171.
Related Help
- Unbalanced Whirlpool/Maytag loads: why shaking happens and how to stop it
- Washer not spinning? Practical steps before you call
FAQ
- What does F9E1 mean on a Whirlpool top-load washer?
- It indicates a long drain. The washer expected water to leave within a specific time. If it doesn’t, the control stops the cycle and sets F9E1.
- Why didn’t diagnostics run any components?
- When a shorted pump overloads the board, the drain driver or low-voltage supply can fail. Then, test mode can’t energize loads.
- Can replacing only the control board fix F9E1?
- Sometimes, but not when a shorted pump caused the failure. If the pump isn’t replaced, the new board can burn again.
- How much resistance should my drain pump show?
- For the WTW6120HW1, the normal spec is roughly 17.8–21 Ω. Readings near zero or very high indicate a failed pump.
- How fast can you service 77450?
- We frequently offer same-day or next-day appointments in Katy and Cinco Ranch. Scheduling online is quick and convenient.
Bottom line: F9E1 on a Whirlpool WTW6120HW1 often starts with a mechanical drain issue that overheats the pump. The shorted pump then takes out the main control. To fix it right the first time, remove the blockage, replace the pump, restore the board, and verify pressure-sensor operation. With thorough diagnostics, the repair lasts.
