Sub-Zero 648PROG Refrigerator Not Cooling in Seabrook, TX? Here’s What Fixed It
At HomeFix Appliance Repair, we specialize in luxury appliance repair across the greater Houston area. One recent example comes from a real customer in Seabrook, Texas, who contacted us about a Sub-Zero 648PROG refrigerator that was no longer cooling properly in the refrigerator section. The freezer, however, was still working perfectly.
This repair case is a perfect demonstration of how complex and high-end Sub-Zero appliances can be—and why they require specialized expertise. Our client invested in one of the most premium built-in refrigerators on the market. The Sub-Zero 648PROG is part of Sub-Zero’s built-in PRO Series, featuring dual compressors, dual evaporators, and over 29 cu. ft. of storage capacity.
Client’s Concern
The homeowner reported:
- Refrigerator section not cooling — 69°F displayed
- Freezer operating normally — holding at 0°F
- Problem started after a power surge during a lightning storm
The fridge had been completely stocked with fresh produce, meats, and dairy—all of which were at risk of spoiling. A high-performance unit like the 648PROG is designed to prevent that with its dual evaporators and microprocessor controls. But when the sealed system is compromised, those features can’t function properly.

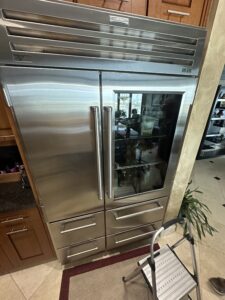

About the Sub-Zero 648PROG
According to the official service manual, the Sub-Zero 648PROG includes:
- Two independent sealed systems — one for fresh food, one for freezer
- Fresh food section with two evaporators and one dedicated compressor
- Use of R134a refrigerant (4 oz for refrigerator, 6 oz for freezer)
- 3-way valve to switch refrigerant flow between fresh food evaporators
- Microprocessor with error-code diagnostics and service mode tests
This unit uses a digital inverter control board to regulate compressor speeds, improving energy efficiency and extending compressor life. However, this system is vulnerable to surges and voltage spikes.
Our Diagnostic Process
When our technician arrived at the client’s home in Seabrook (ZIP 77586), the unit was already showing signs of system failure. We followed this procedure:
1. Entered Service Mode
Sub-Zero’s service mode (activated via the control panel) allowed us to test each component. Error codes confirmed issues with the refrigerator compressor circuit.

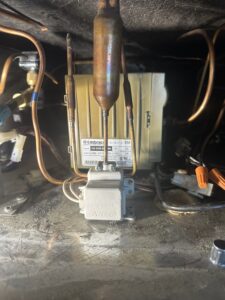

2. Checked Inverter and Compressor
Using a multimeter and clamp meter, we verified the compressor wasn’t running and was drawing no current. We then tested the inverter board, which showed signs of internal failure. The main board was still sending a run signal, but the compressor didn’t engage.
3. Pressurized Sealed System
We charged the system with nitrogen at 200 psi and isolated each section using the service valves. A pressure drop in the fresh food circuit confirmed a slow leak in one of the evaporators. Soap testing confirmed small bubbles forming on the capillary tubing—indicating refrigerant loss over time.
4. Visual Component Inspection
The top service panel revealed two fresh food evaporators and a central 3-way valve directing flow. This valve also needed replacement due to sticking during mode transitions.
Repairs Completed
We performed the following Sub-Zero-authorized repairs:
- 🔁 Replaced the fresh food compressor (1/3 HP Embraco)
- 🔁 Installed a new inverter board compatible with the dual-speed configuration
- ❄️ Replaced both refrigerator evaporators with factory-grade copper coils
- 🔃 Swapped out the 3-way valve for refrigerant flow control
- 🧯 Pulled vacuum for 40 minutes at -500 microns, held for 20 minutes
- 💨 Recharged with R134a using digital scale — 4 oz measured
All brazed joints were done with silver-bearing solder per Sub-Zero repair guidelines. A post-repair leak check with nitrogen confirmed system integrity.
How Long Does This Repair Take?
This particular job required two trips:
- Day 1: Full diagnostics, parts order, refrigerant recovery
- Day 2: Compressor, evaporators, valve and inverter installation
The total time on site was just under 6 hours. The homeowner was kept updated with photos, diagnostic reports, and part numbers at every step.
What Could Have Prevented This?
This failure was likely triggered by a lightning-induced power surge. We always recommend the following preventive steps for Sub-Zero owners:
- ⚡ Install a surge protector rated for 15 amps or higher
- 🧼 Vacuum condenser coils every 6 months (they’re behind the grille)
- 🧊 Run defrost cycles manually during long vacations to avoid frost build-up
- 🧪 Check for standing water in the fresh food drip tray (a sign of blocked drain)
How Much Did It Cost?
The total repair for this high-end model, including parts and labor, fell in the $3,800–$5,200 range. This includes diagnostics, nitrogen testing, copper re-piping, refrigerant recovery, and certified component replacement.
Replacing the entire unit would have cost well over $15,000, and required custom cabinetry modifications. The repair was not only faster but also significantly more economical.
We Serve the Greater Houston Area
We’ve repaired Sub-Zero refrigerators in:
- 📍Seabrook
- 📍Kemah
- 📍League City
- 📍Clear Lake
- 📍Friendswood
- 📍Pearland
- 📍Pasadena
- 📍South Houston
Our Houston-based Sub-Zero repair team travels with the tools and refrigerant handling licenses to perform same-day diagnostics and even complex repairs on-site. Whether you own a 648PROG, BI-42UFD, or newer Designer Series model — we’ve got you covered.
Warning Signs Your Sub-Zero Needs Service
Don’t wait until your food spoils. Watch for these signs:
- 🚨 Warm fridge but cold freezer
- 🔇 Compressor is silent or clicking
- 💧 Water pooling in the fresh food compartment
- ⚠️ Error codes on the display (“Service” or blinking temperatures)
- 🌫️ Heavy frost on evaporator panels
Why Choose HomeFix Appliance Repair
- 🔧 Sub-Zero certified technicians
- 📍 Local experts based in West and South Houston
- ⚙️ Same-day response in most ZIP codes
- 🛠️ Warranty on labor and all OEM Sub-Zero parts
Ready to book your Sub-Zero service? Contact us online or call today. We proudly serve Seabrook and the entire Houston metro area.
FAQ
How many evaporators are in the Sub-Zero 648PROG?
This model features two evaporators for the fresh food section and one for the freezer. It uses a 3-way valve to manage the refrigerator circuit.
What refrigerant does it use?
R134a — 4 oz for the refrigerator and 6 oz for the freezer, per factory specifications.
How often should I service my Sub-Zero?
We recommend a professional check-up every 12–18 months, especially for older PRO Series models like the 648PROG.
What’s the average repair cost?
Compressor or evaporator repairs typically range from $1,800 to $3,200 depending on model and part availability.
—
